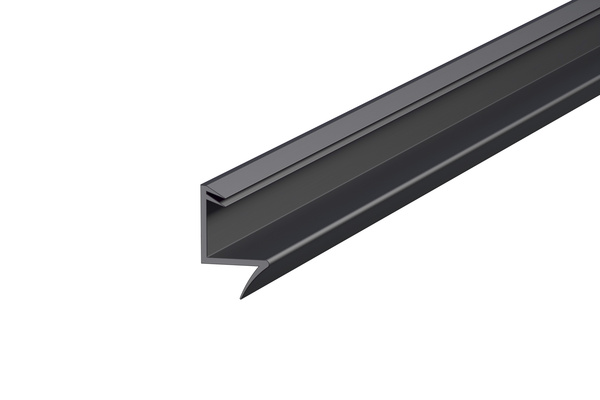

LAS1206K Batwing®-On-A-Stick Perimeter Seal
Kerf fit
The LAS1206K Single Batwing®-on-a-stick is a smoke and acoustic seal designed for easy installation with its innovative kerf fixing feature. The single fin design provides a reliable barrier against smoke and sound while minimising resistance when opening and closing the door. Made from a flexible elastomeric material, the LAS1206K boasts long-lasting performance as the fin springs back to its original shape after each use.
System specification
| Property | LAS1206K |
|---|---|
| TEST EVIDENCE | Acoustic: BS EN ISO 10140-2: 2010 (up to Rw 41dB). Durability: minimum of 100,000 cycles |
| PERFORMANCE | Meets smoke requirement: BS 9999: 2017 |

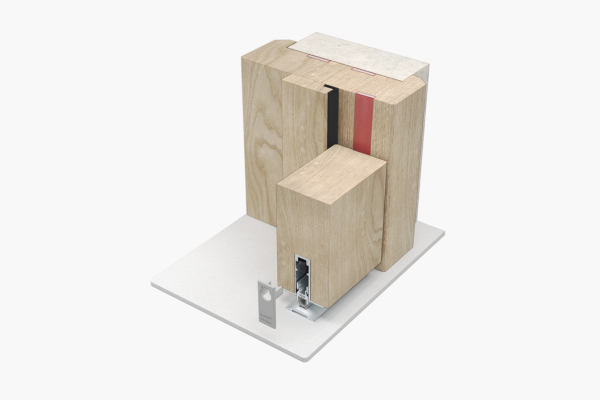

| LOCATION | Head + jambs of single + double leaf doors |

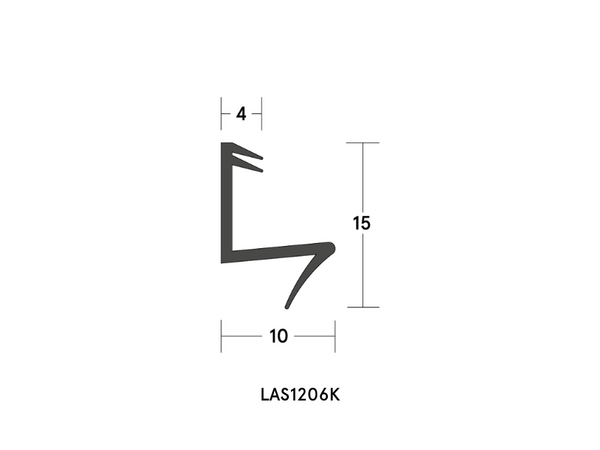

| MIN/MAX GAP SIZES | 3mm/4mm |
| SEAL MATERIAL | Co-extruded rigid back PVC with flexible fins |
| Standard colours | White, black, dark brown, light brown + grey |
| Non-standard finishes | Cream, red, silver + clear subject to MOQ |
| STANDARD LENGTHS | 1m + 2.1m. Single doorset pack consisting of 1 x 1m + 2 x 2.1m. Other lengths to special order |
| CERTIFICATION | |
| Certifire | - |
| UL | R27972 |
