LAS8001M Drop Seal
Mortised

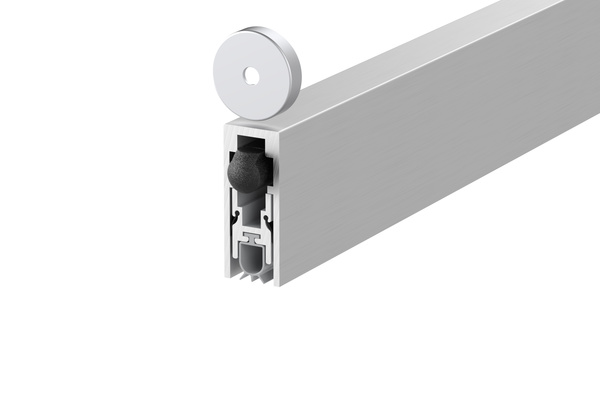

A slimline, mortised automatic drop seal for timber sliding doors. The end plate cleverly conceals a magnet, which engages with a button in the frame, to assist the door closure and ensures the gasket remains in the dropped position without forcing the door open. The seal features a high efficiency mechanism, which lifts the seal clear of the floor as soon as the door is opened by a few millimetres; resulting in lower door operating forces.
Finish
![](/imager/productimages/Supporting-images/Isometrics/1266/LAS8001M-Isometric_5472332afa344033d2bf9e7b6b9d883e.jpg)
![](/imager/productimages/Supporting-images/Cross-sections/1032/LAS8001M-cross-section_5472332afa344033d2bf9e7b6b9d883e.jpg)
![](/imager/productimages/Supporting-images/Isometrics/1266/LAS8001M-Isometric_905a32f077cde75e59ae4f0bd185c8e7.jpg)
![](/imager/productimages/Supporting-images/Cross-sections/1032/LAS8001M-cross-section_905a32f077cde75e59ae4f0bd185c8e7.jpg)
System specification
Property | |
---|---|
LOCATION | Sliding doors |
MIN/MAX GAP SIZES | 1mm/13mm |
SEAL MATERIAL | Grey or black silicone rubber |
Standard finish | Silver anodised aluminium with silver end plates, and grey silicone rubber gasket as standard. Chrome finish magnetised button |
Non-standard finish | Silver anodised aluminium with bronze end plates, and black silicone rubber gasket are subject to non-standard charges and additional lead times |
STANDARD LENGTHS | 335mm, 435mm, 535mm, 635mm, 735mm, 835mm, 935mm, 1035mm, 1135mm and 1235mm. Sizes above 1235mm are available on request. Note: Each length can be cut back to the next size down. The 335mm can be cut back to 255mm. |
ADJUSTMENT | Self-levelling on uneven surfaces. Can be adjusted independently of the fixing screws |
