LAS9010 Flush Bolt + Drop Seal

Architectural Seals

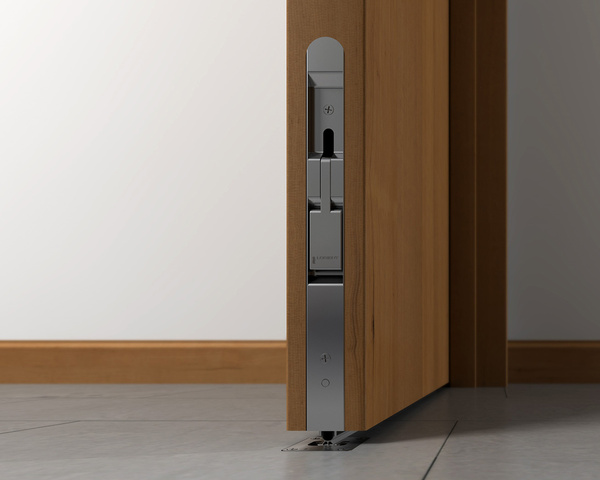

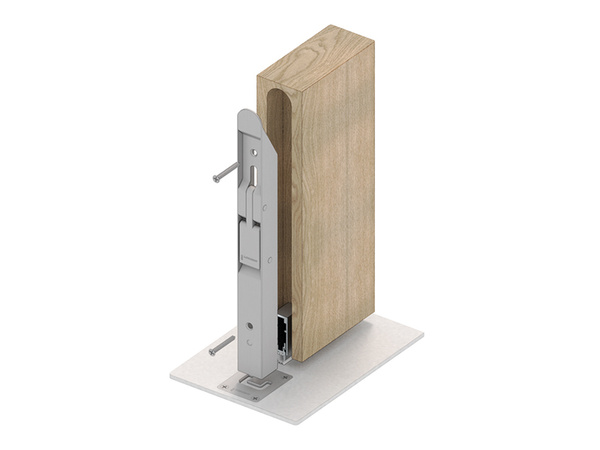

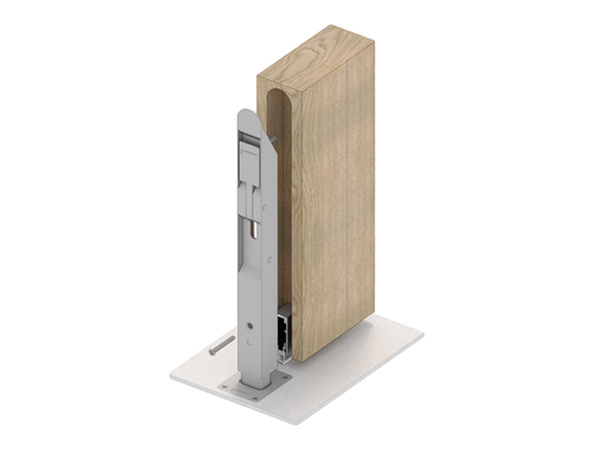

An innovative, slimline flush bolt designed for both the top and bottom of the door, seamlessly integrating with our most popular drop seal – LAS8001 si. The flush bolt is a security device used on pairs of doors to secure the inactive leaf. It is activated by a discreet Lorient-branded lever, dropping the bolt into a sleek keep in the floor. Specifically designed for use with our rebated high-performance drop seal, this system provides the ultimate combination of security with smoke, acoustic, and energy containment at both the top and bottom of the door.

View the LAS9010 Flush Bolt + Drop Seal animation.

Finish

System specification

Property
Test evidence Fire: BS EN 1634-1:2014+A1:2018 in an FD30 & FD60. Smoke: BS EN 1634-3:2004 at ambient temperature. Acoustic: BS EN ISO 10140-2:2010 (up to Rw 35dB). Classified to BS EN 12051: 2000. Durability: 50,000 cycles
Min/max gap size 1mm/13mm
Location Double doors. For use on both right & left handed doors. Suitable for bottom & top of the door
Material Flush bolt - brushed stainless steel. Seal material - grey or black silicone rubber
Drop seal standard lengths 335mm, 435mm, 535mm, 635mm, 735mm, 835mm, 935mm, 1035mm, 1135mm + 1235mm. Note: each length can be cut to the next size down. The 335mm can be cut back to 255mm
Use with All standard lengths of LAS8001 si, with the ability to cut to size. *Cladding kits must be used for fire rated variants
