RF1™ 60 Minute Glazing System
Bead Applied System

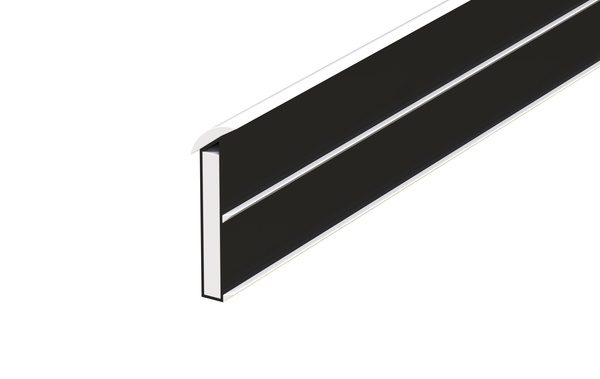

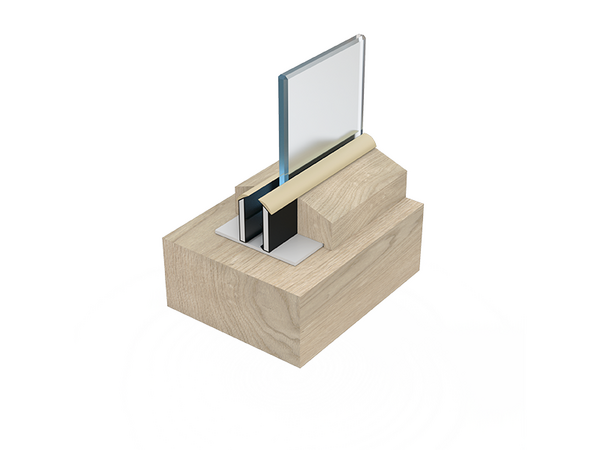

RF1™ is a versatile bead applied glazing system for 60 minute fire resistant doors + screens. Comprises a pair of bead applied intumescent glazing seals + an intumescent liner. With premium aesthetics, the caps are the only visible elements when fitted + a variety of colours are available to harmonise with the door.
Colour
System specification
| Property | |
|---|---|
| Application | FD60 fire doors + screens |
| SEAL MATERIAL | Sodium sillicate intumescent encapsulated in rigid PVC with flexible fins |
| Glass thickness | Suitable for use with a varety of fire rated glass types for both doors + screens |
| Standard lengths | 1 pack contains: 2 No. x RG2704 in 2.1m. 2 No. x B25402 in 1.050m. minimum order quanitity 10 packs |

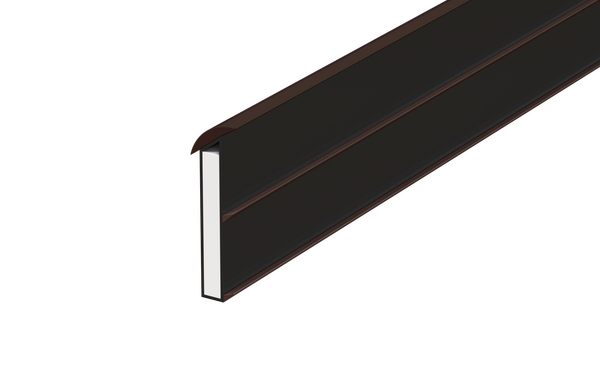

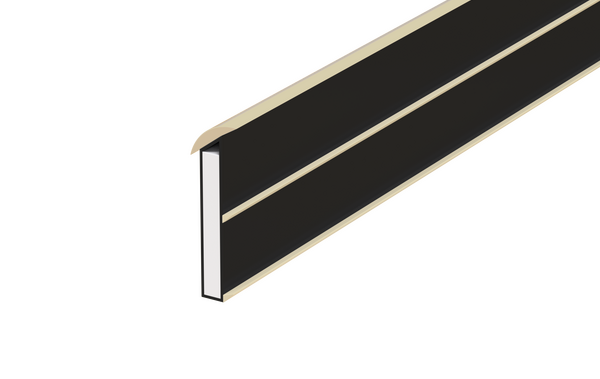

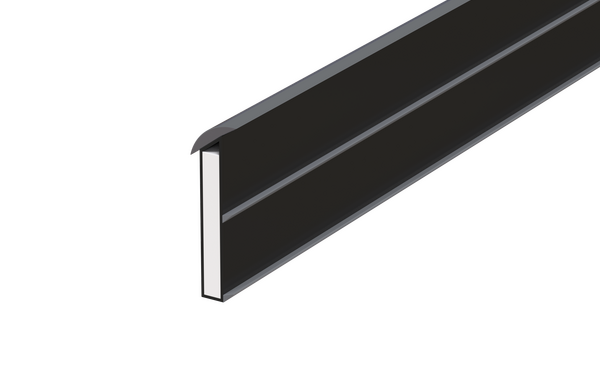

| Finish | Black profile with white, cream, grey, light brown, dark brown or black caps |
| Test evidence | Fire: BS 476-22: 1987 |
| CERTIFICATION | |
| Certifire | CF5033 |
