RJ008 Letterplate
Security + Fire Resistant Letterplate
Designed to meet the exacting security standards of TS 008:2015, the RJ008 letterplate is tested to withstand a series of physical tests based on the common methods of burglary. Providing up to 60 minutes fire resistance, this high-performance letterplate is available in a number of stylish finishes.
Finish
System specification
| Property | |
|---|---|
| Door Thickness | 44mm timber door. 54mm timber door |
| Size | Internal: 300mm x 115mm x 35mm. External 227mm x 305mm x 77mm |
| Internal projection | 40mm |

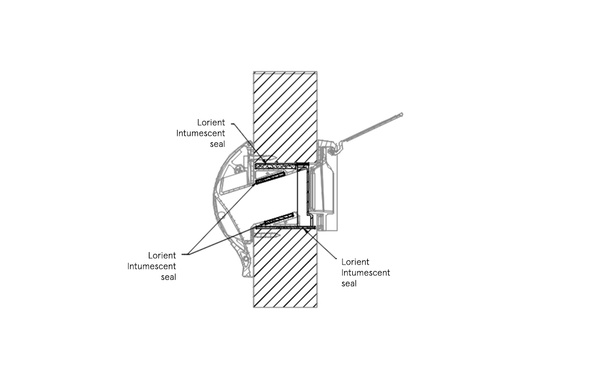

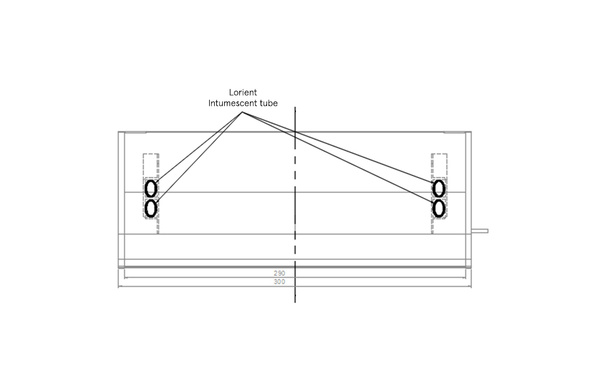

| SEAL MATERIAL | Intumescent lining |

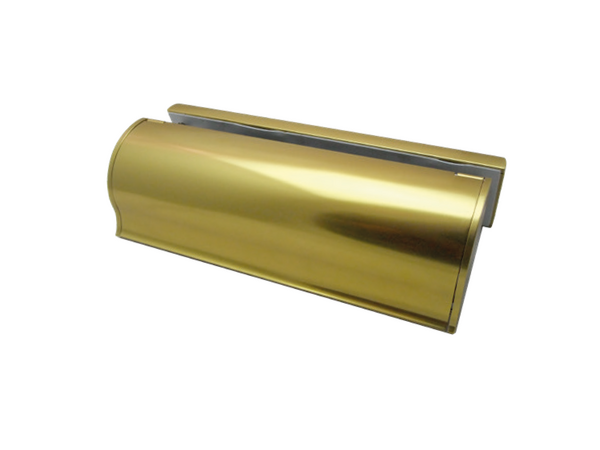

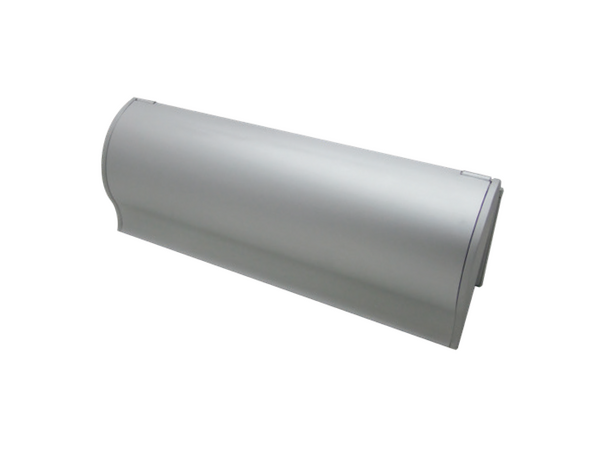

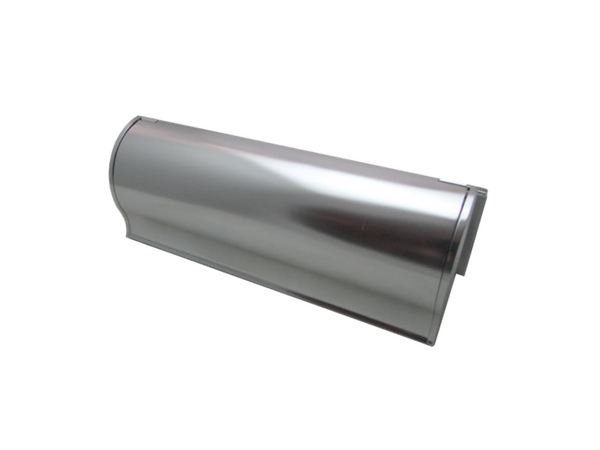

| FINISHES | Gold anodised aluminium. Silver anodised aluminium. Polished silver aluminium |
| TEST EVIDENCE | Fire: BS 476-22:1987 in an FD30. Fire: BS 476-22:1987 in an FD60. Security: PAS 24:2016. Classified to TS 008:2015. Durability: 20,000 cycles |
| PERFORMANCE | Can provide up to 60 minutes fire resistance |
| CERTIFICATION | |
| Certifire | CF5688 |
| BSI Kitemark | KM 670828 |
