SYSTEM-36 PLUS Glazing Seal

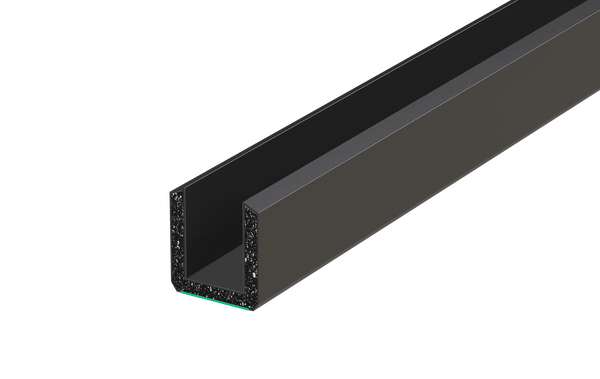

U-Shaped Gaskets

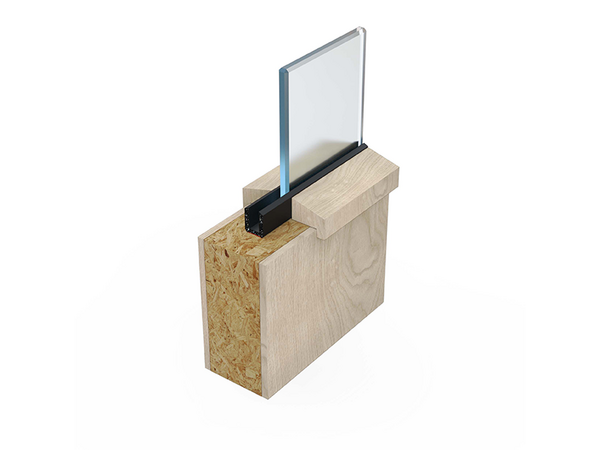

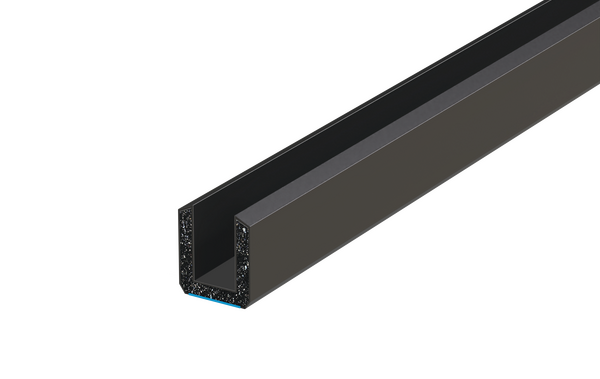

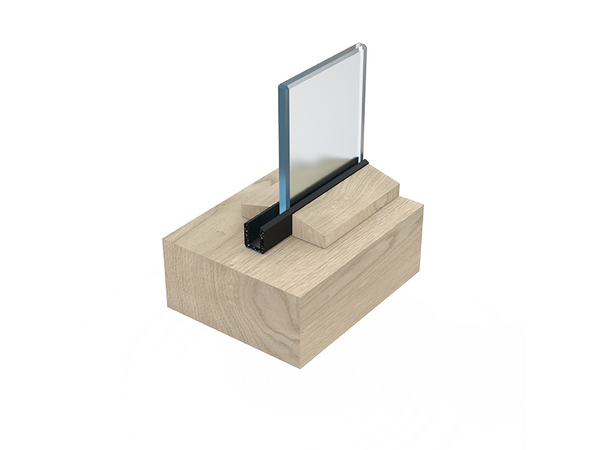

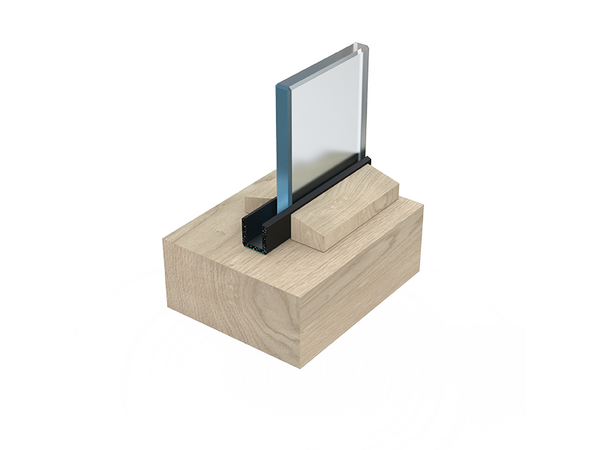

Lorient’s System-36 PLUS is a flexible family of U-shaped intumescent gaskets designed for 30 minute fire resistant doors and screens. When using approved glass types it provides 60 minute fire resistance for doors and screens.

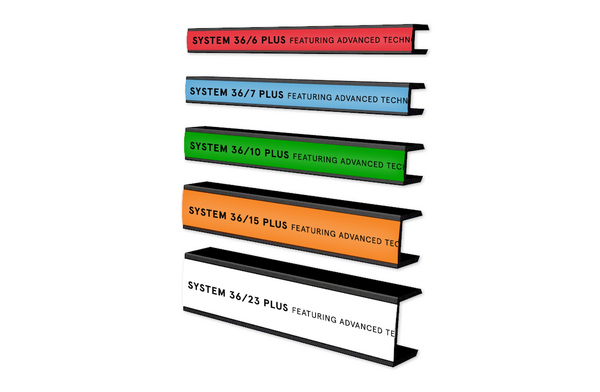

Colour
System specification
| Property | System-36/6 PLUS | System-36/7 PLUS | System-36/10 PLUS | System-36/15 PLUS | System-36/23 PLUS |
|---|---|---|---|---|---|

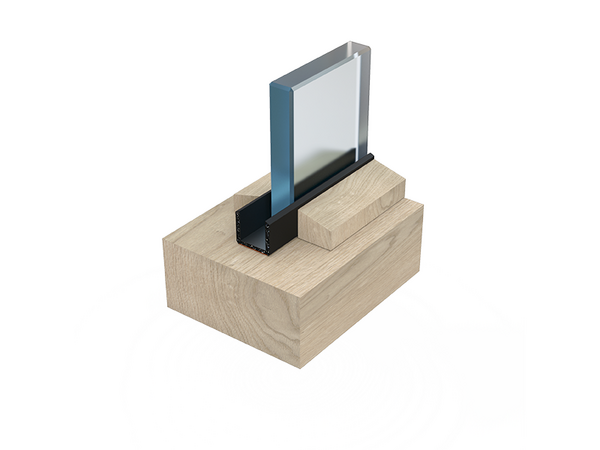

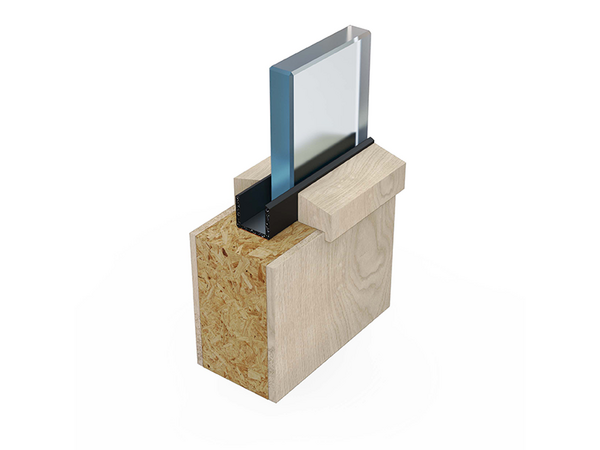

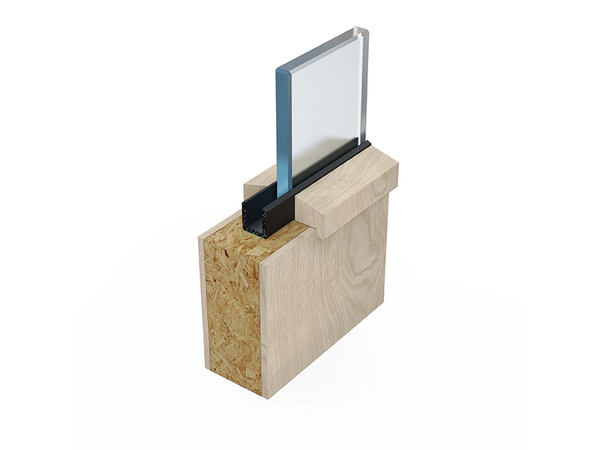

| Application | Doors + screens. FD30 fire doors | Doors + screens. FD30 fire doors | Doors + screens. FD30 fire doors | Doors + screens. FD30 + FD60 fire doors | System for screens only |
| Seal material | Intumescent graphite | Intumescent graphite | Intumescent graphite | Intumescent graphite | Intumescent graphite |

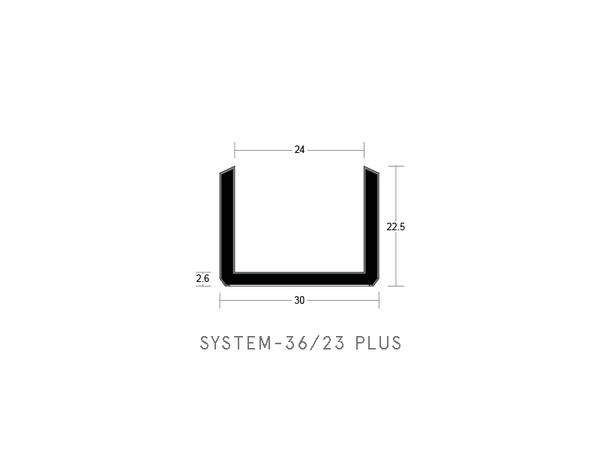

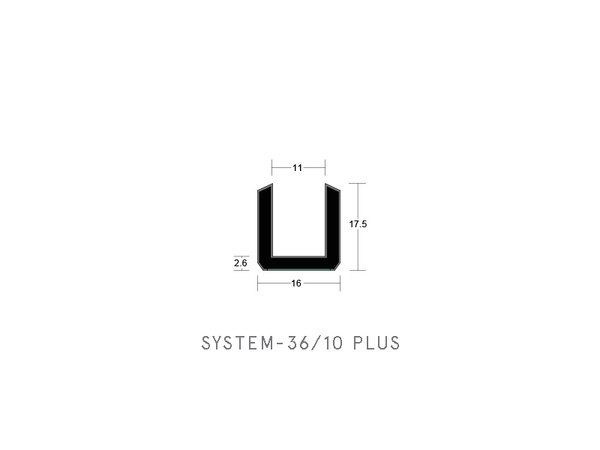

| Glass thickness | 6mm - 7mm | 7mm - 8mm | 9mm - 11mm | 14mm - 16mm | 23mm |
| Standard lengths | 60m coils | 60m coils | 30m coils | 30m coils | 25m coils |
| MOQ | 1 coil (60m) | 1 coil (60m) | 1 coil (30m) | 1 coil (30m) | 1 coil (25m) |
| TEST EVIDENCE | Fire: BS EN 1634-1: 2014 & BS 476-22: 1987 | Fire: BS EN 1634-1: 2014 & BS 476-22: 1987 | Fire: BS EN 1634-1: 2014 & BS 476-22: 1987 | Fire: BS EN 1634-1: 2014 & BS 476-22: 1987 | Fire: BS EN 1634-1: 2014 & BS 476-22: 1987 |
| CERTIFICATION | |||||
| Certifire | CF5060 | CF5060 | CF5060 | CF5060 | CF5060 |
